Dodge RAM 3500
LARAMIE

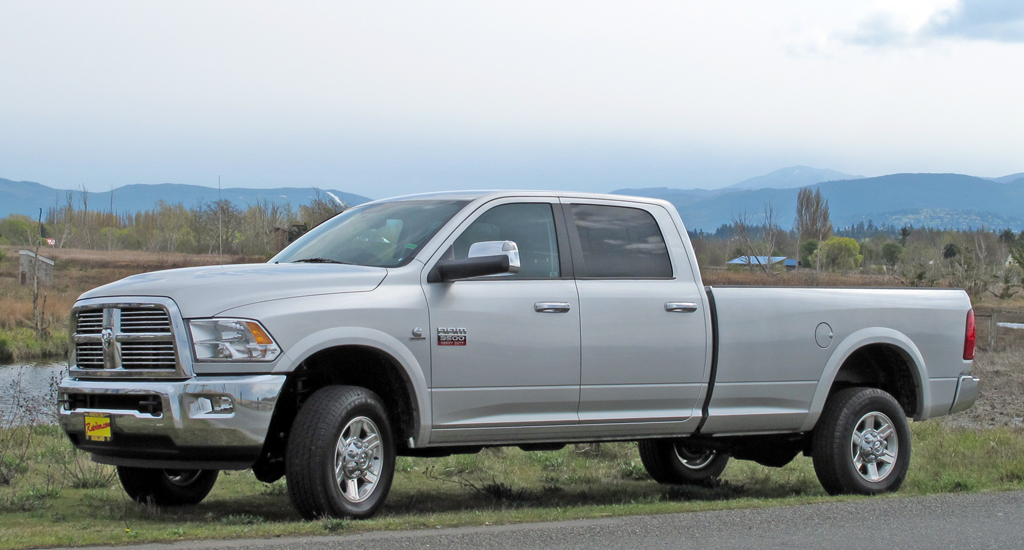

The virgin Ram - the day after bringing our new 2010 Dodge Ram home
The Specs:
2010 Dodge Ram 3500 'Laramie' 4X4
Body Style: Crewcab, Longbed, Single Rear Wheel (SRW)
| Dimensions | Inches | Feet | Meters | |
| Length | 259.4 | 21' 7.0" | 6.59 | |
| Width | 79.4 | 6' 7.4" | 2.02 | |
| Height | 77.5 | 6' 5.5" | 1.97 | |
| Length with Arctic Fox 24-5N | 537 | 44' 9.0" | 13.64 | |
| Weight | Pounds | KG | ||
| Actual OE GVW empty | 7,600 | 3447 | ||
| Actual GVW ready to tow | 8,490 | 3851 | ||
| Actual GCVW with Arctic Fox 24-5N | 18,460 | 8373 | ||
| Capacities | ||||
| GVWR | 10,100 | 4581 | ||
| GCVWR | 21,000 | 9525 | ||
| Tow Rating | 13,400 | 9525 |

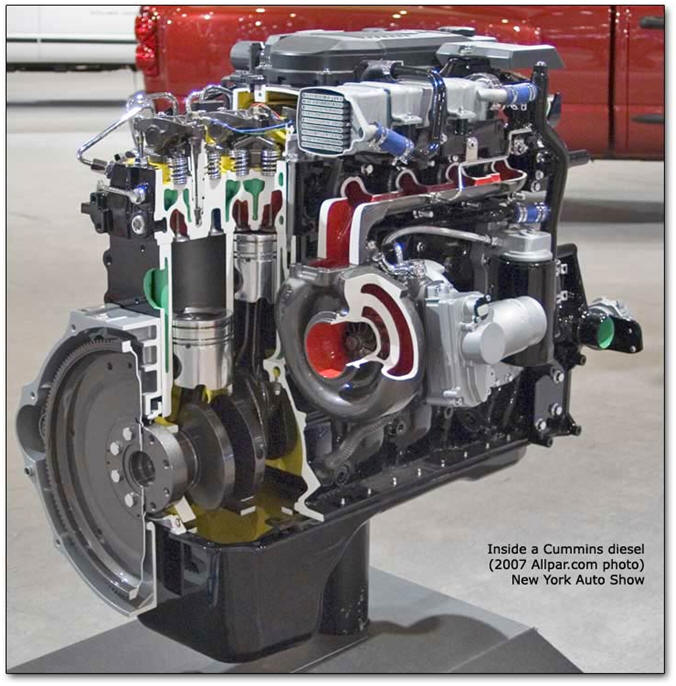

Engine: Cummins 6.7L TurboDiesel with Exhaust Brake; 350 HP @ 3,000 RPM and 650 ft-lbs torque at 1500 RPM
Transmission: 68RFE six-speed automatic

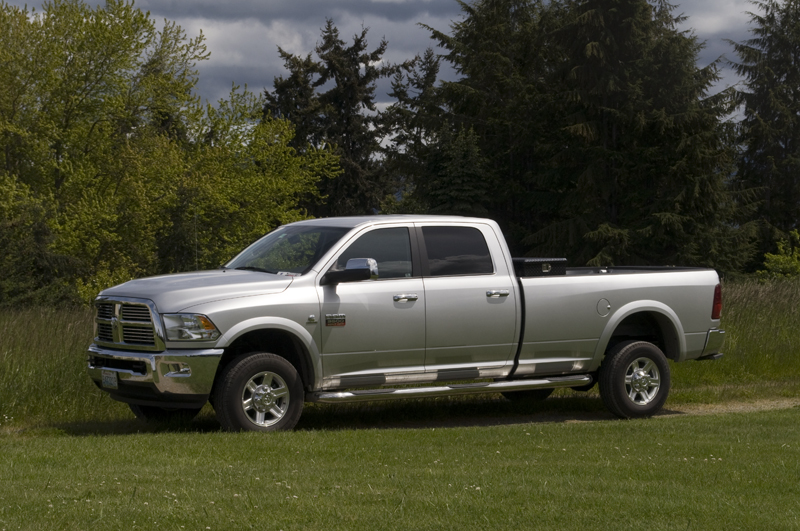

The next group of photos were taken after installing the wheel-to-wheel step bars. Note the black cross-bed tool box temporarily installed from CJ's old F150 SuperCrew
PROJECT CHART
Completed Projects
| Project Name | Manufacturer/Comment | Thumbnail Image | Link |
| Step Bars | Wheel-to-Wheel |
|
|

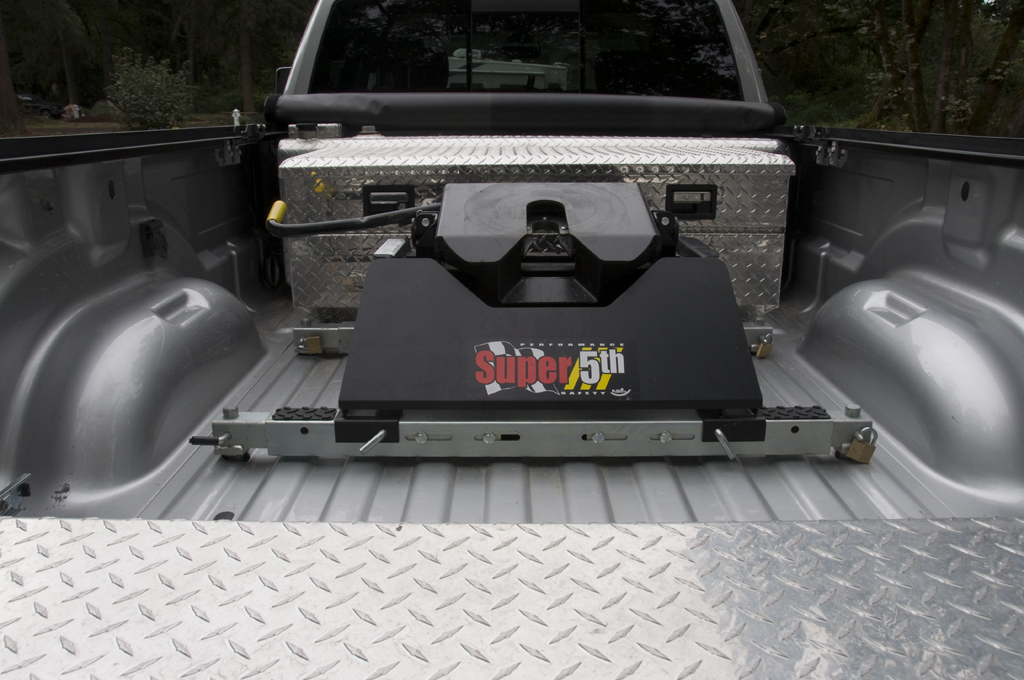

| 5th Wheel Trailer Hitch | PullRite Super 5th & SuperRails |
 |
 |

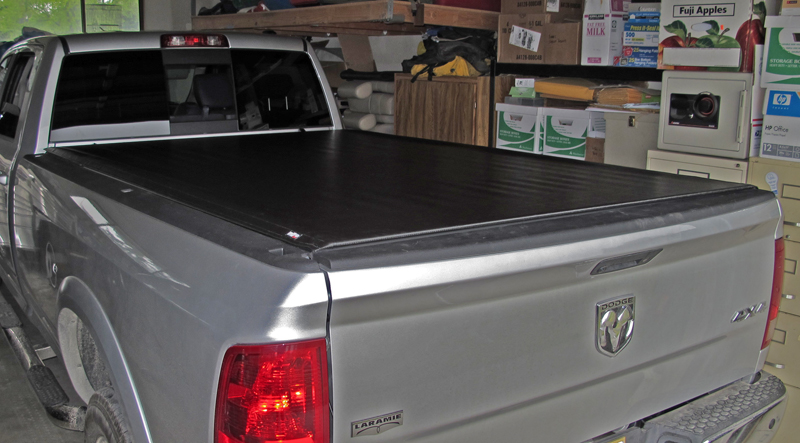

| Tonneau Cover | Truxedo 'Deuce' |
 |
|

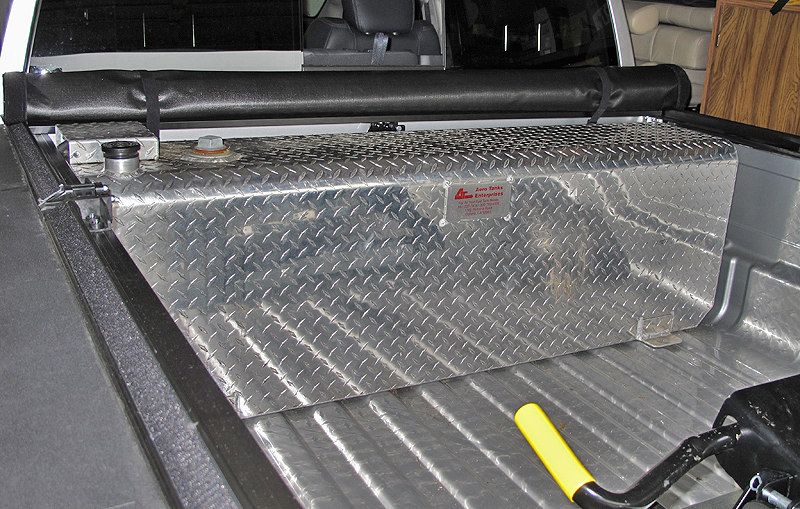

| Auxiliary Fuel Tank | AeroTank 50-gallon, Electric transfer pump and auxiliary filter |
 |
|
| Tool Box; low profile | Dee Zee #DZ8559 5th Wheel Box |
 |
|
| Tool Box; mid-bed | Northern Tools |
|
|

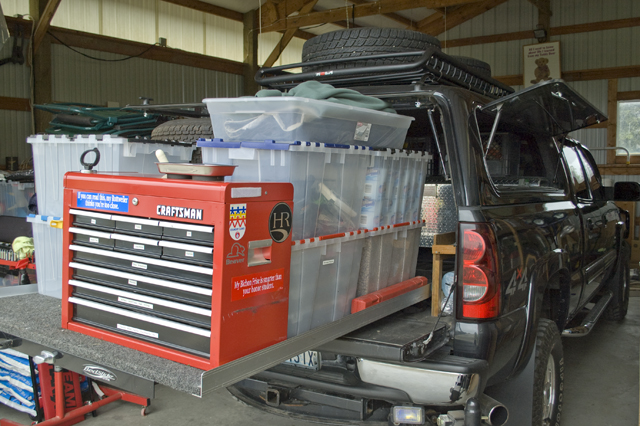

| BedSlide | Classic BedSlide by IFW |
 |
|
| TPMS - Tire Pressure Monitoring System | Doran 360RV TPMS |
 |
|

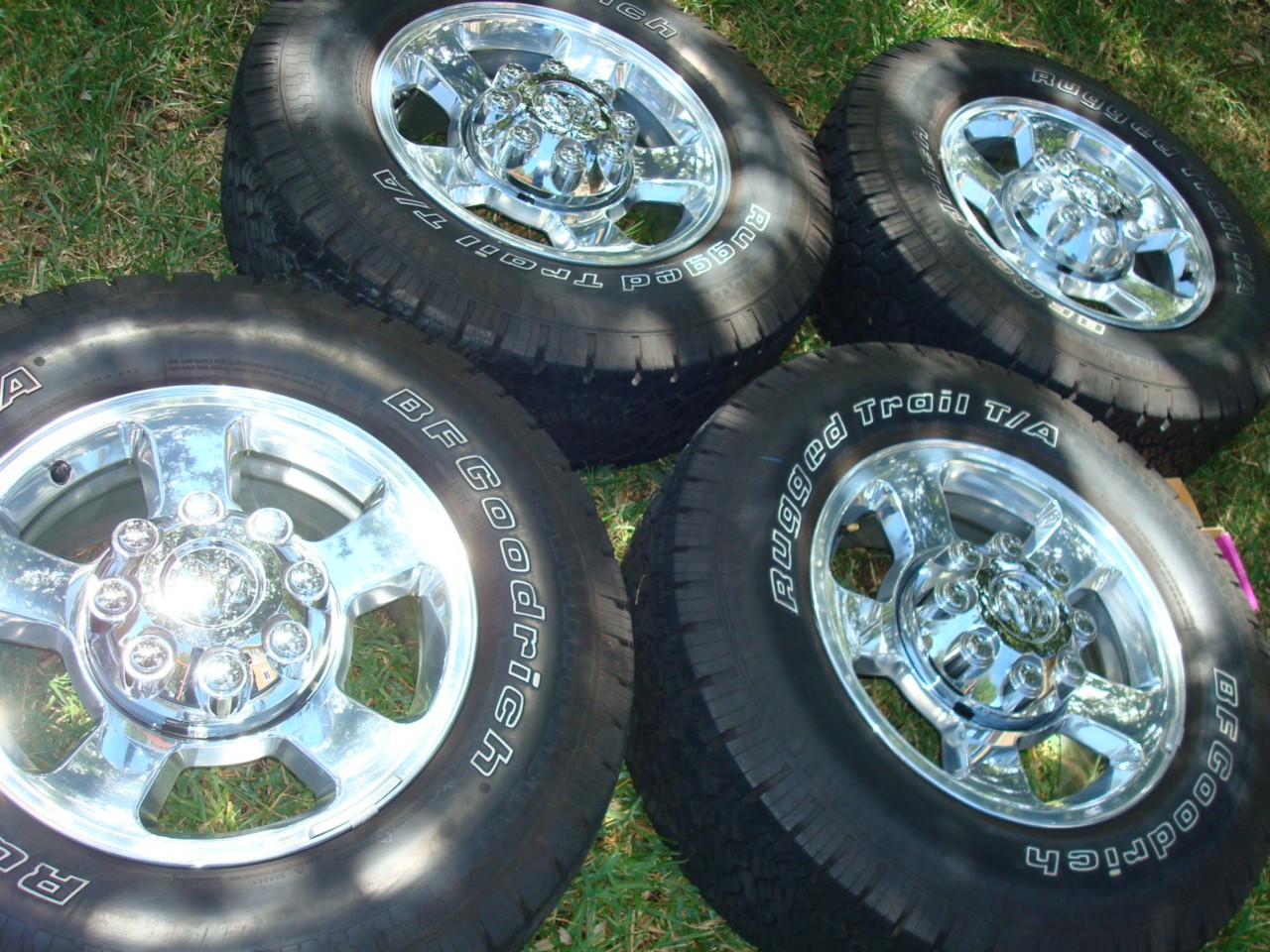

| Wheels & Tires | Michelin LTX BFG Rugged Trail T/A Bridgestone Blizzak W965 BF Goodrich All-Terrain T/A KO |
 |
|
| Sunroof | |||
Future Projects
| Project Name | Manufacturer/Comment | Thumbnail Image | Link |

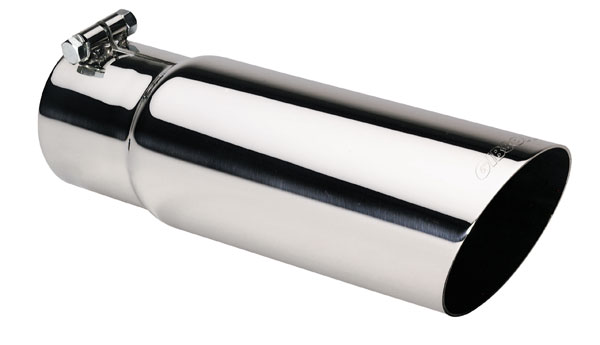

| Exhaust Tip | Large bore S/S exhaust tip |  |
|

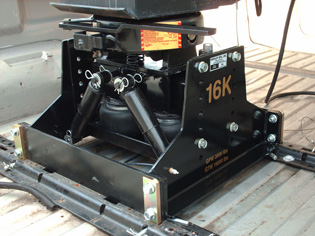

| 5th Wheel Air Hitch | Hensley TrailerSaver air ride hitch |  |
|
| Dog Bed / Seat Cover | DIY | ||
| Pyrometer & Turbo Boost Gauges | TelTek Digital |  |
|

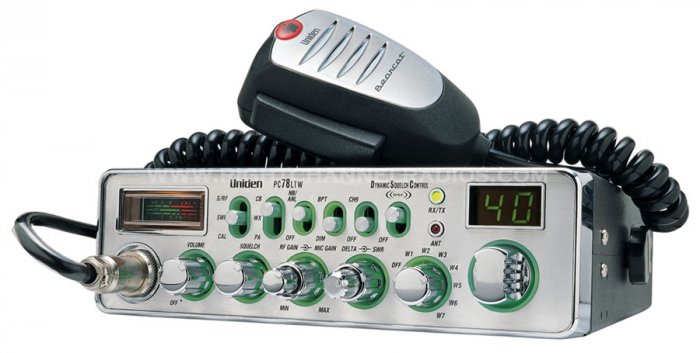

| CB Radio | Cobra 76 WXST or Uniden Bearcat PC78 LTW |
 |
|

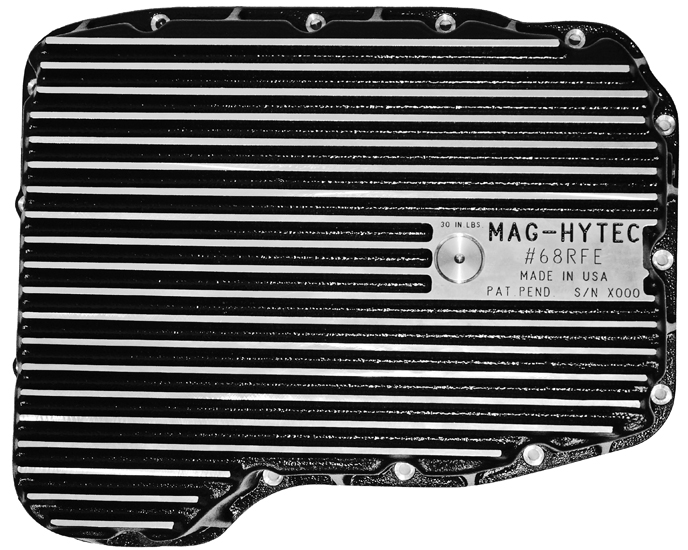

| Transmission Cooler and/or Oil Pan | MAG-HYTEC |  |
|

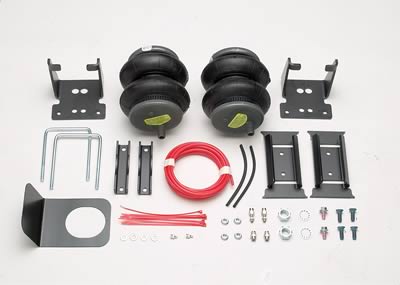

| Firestone Air Bag system | Firestone # 2299 |  |
|

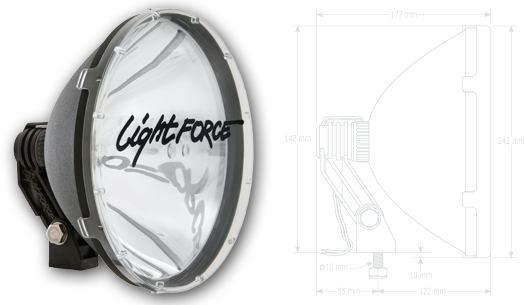

| Driving Lights | Light Force |  |
|
| Backup Lights | |||

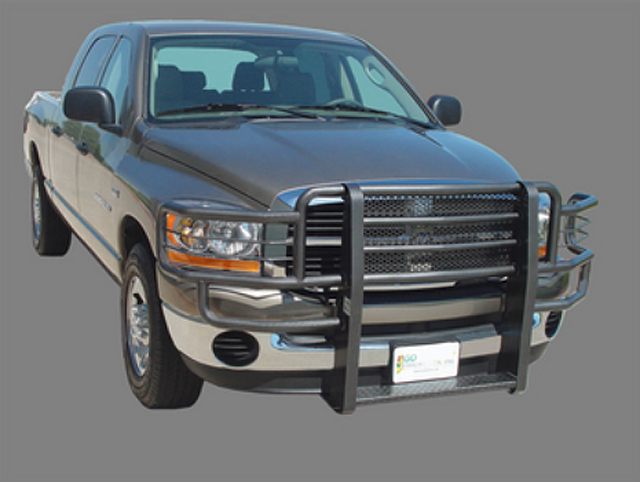

| Grill Guard | The Rancher or Herd | .jpg) |
|
| Mud Flaps | |||
| Backup Camera functionality with trailer | |||
This page was last updated on 10/10/2010 23:25
