W140 Blower Motor

bullet

Air Recirculation Filter R&R; Maintenance Job # 8383

The cabin filter is a routine replacement item.  The service interval recommended by Mercedes-Benz is 45K miles/2 years.

The job is basic, though there are a few items that need to be observed in the process.

Part # 140 835 00 47 lists for $42.50

bullet

Blower regulator R&R

Complaint:  Blower fan does not change speeds.  Operates only at slow speed.

Solution:  The dealer diagnosed the blower motor as bad, but when I double-checked with my service writer he suggested I replace the blower regulator.  Works great.

Part # 140 821 83 51 lists for $338.00



Note:  These images may not represent every detail of the process.

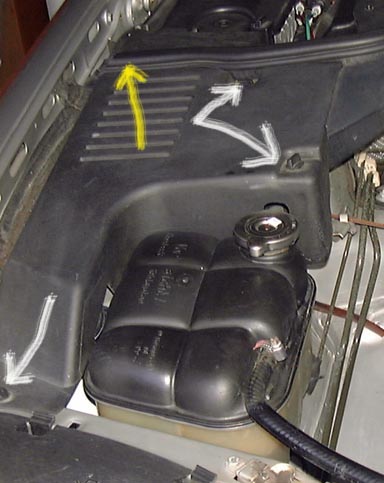

Lift the weather strip (yellow arrow) and turn the Duz fasteners 1/4 CCW (white arrows)

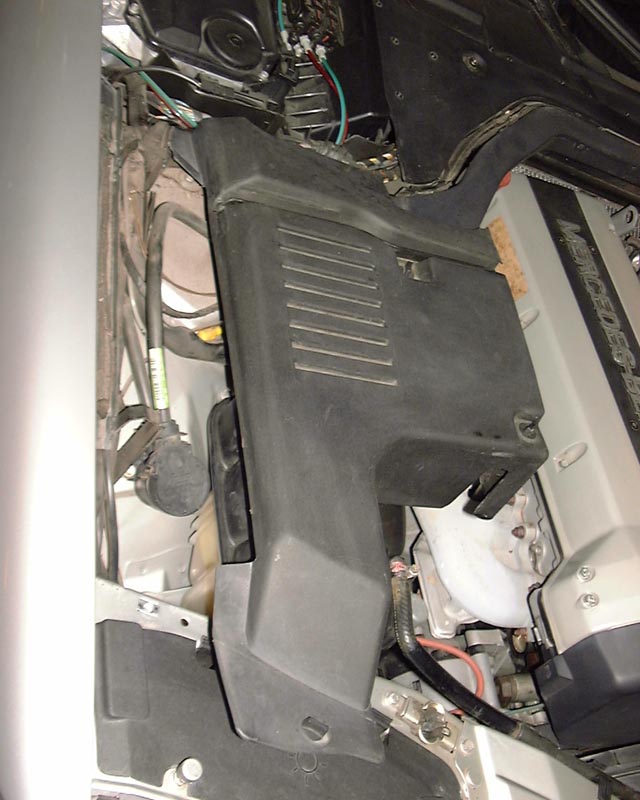

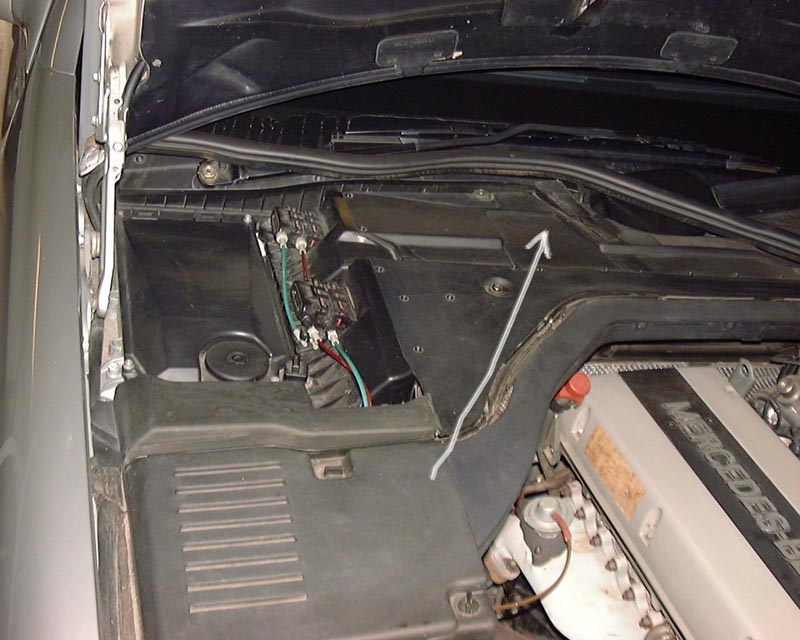

Lift the cover off over the right wheelhouse


Remove screws for small cover

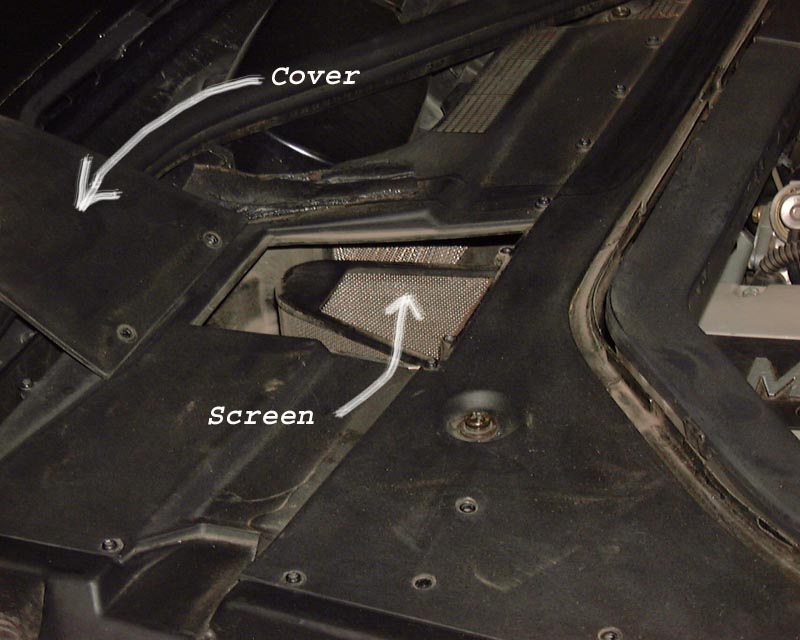

Lift off cover and lift out screen

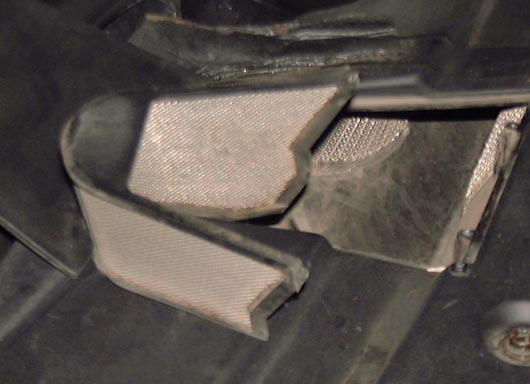

Close up of screen


Lift remainder of weather strip from air duct.

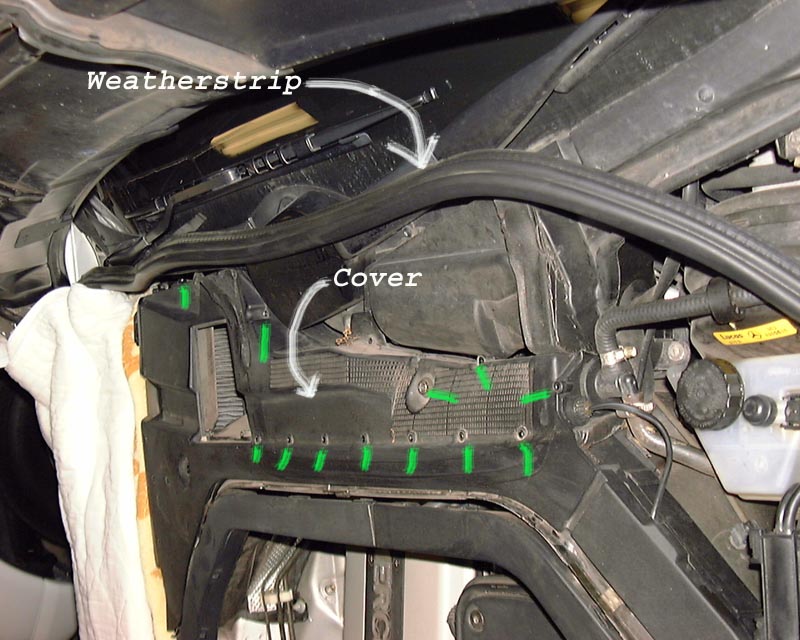

Remove many screws holding air duct cover (green arrows)


Air duct cover removed

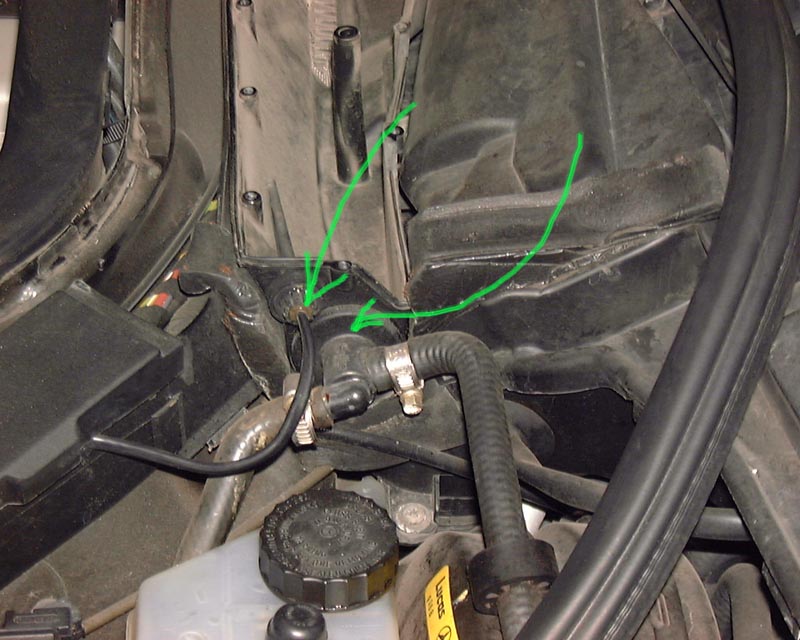

Disconnect sensors from left end of air duct.  Large sensor twists CCW slightly to remove

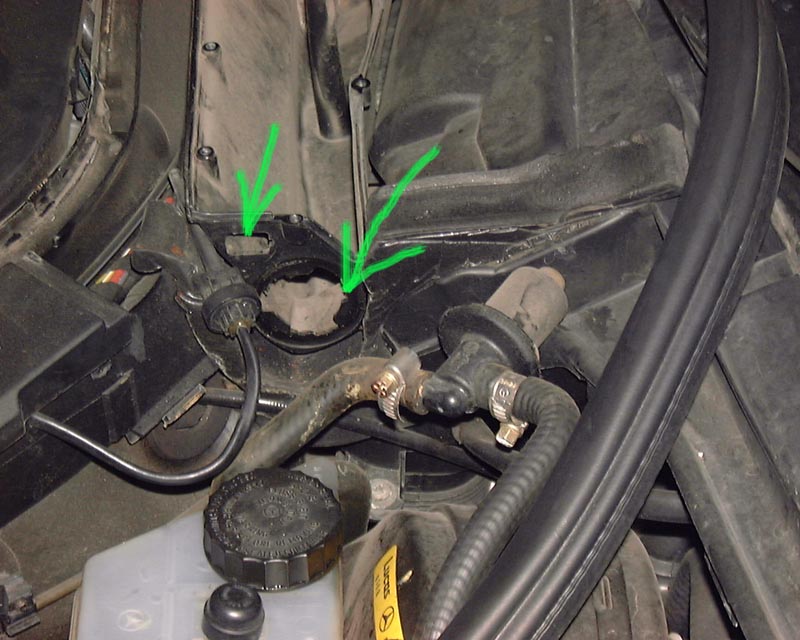

Image shows mounting holes of sensors in left end of air duct

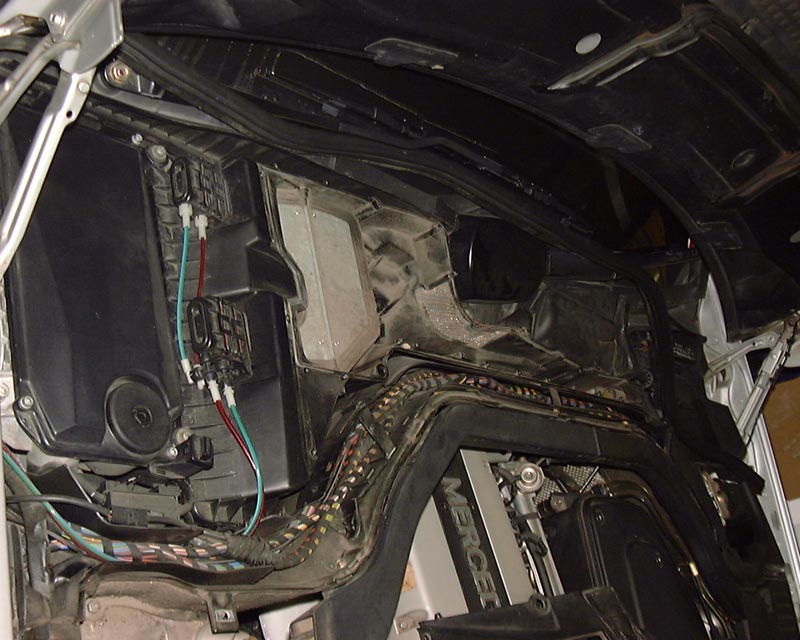

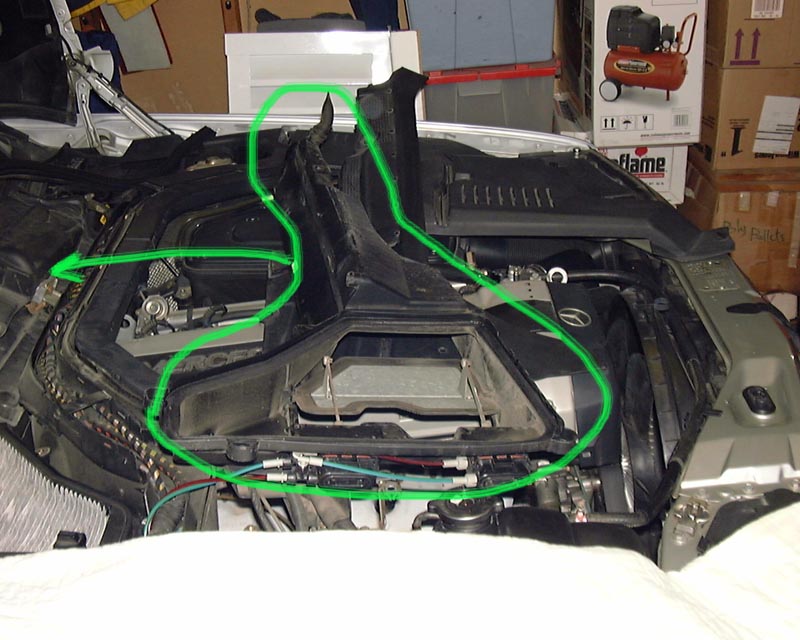

Air duct removed

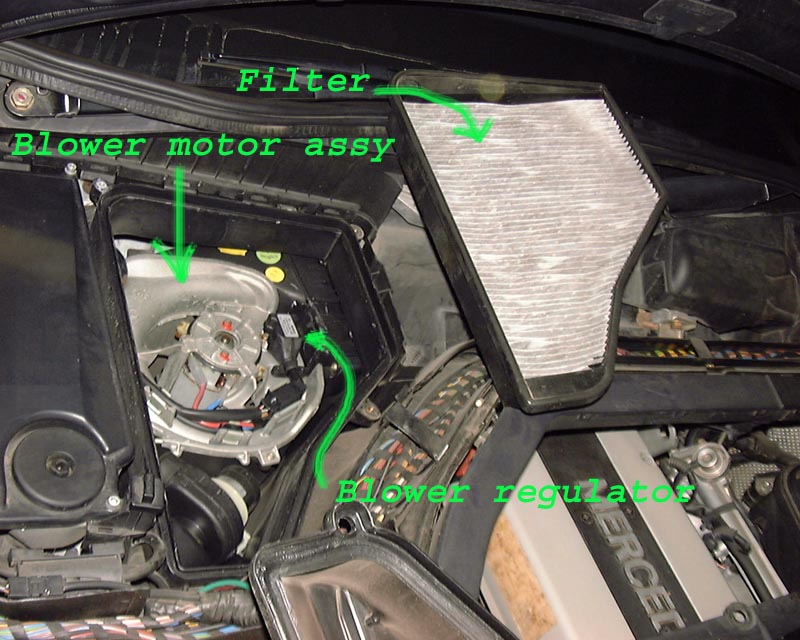

Cabin filter




Lift cabin filter

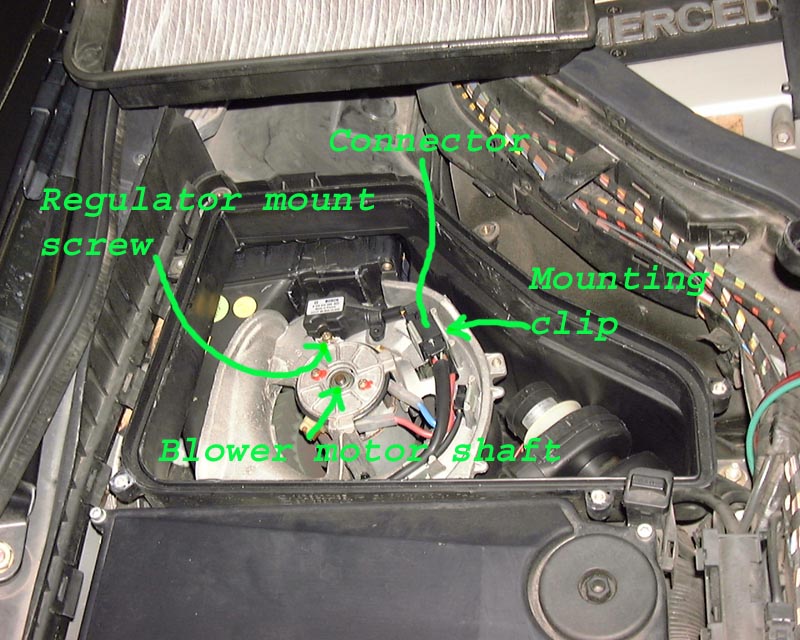

Blower regulator mounting details


Remove mounting screws

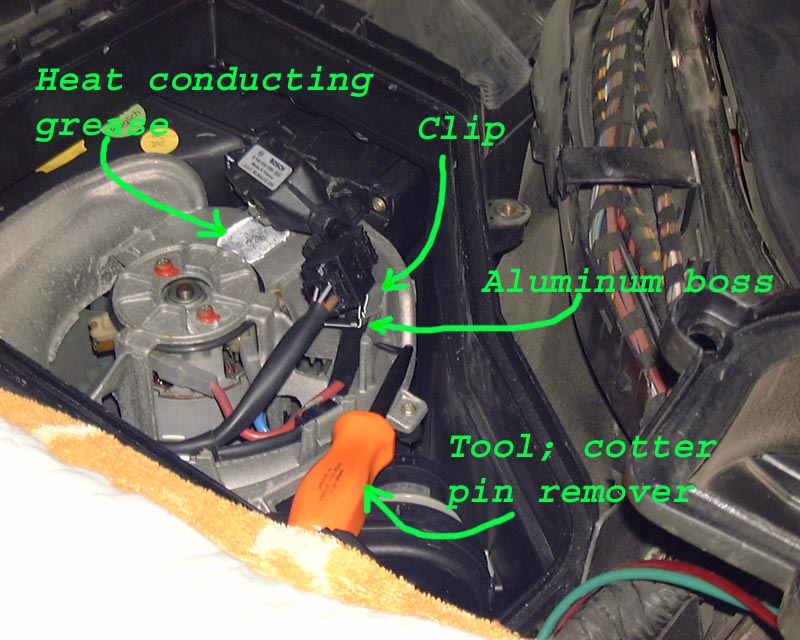

Pry connector mounting clip off boss on housing

Disconnect

To replace, just reverse the procedure.

Be sure to clean the mounting surface for the blower regulator heat sink and use special grease.

Torque regulator mounting screws per spec
